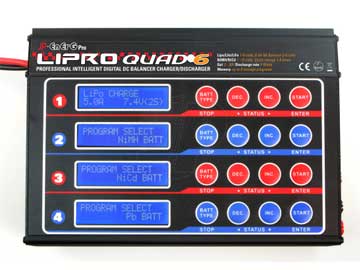

LiPro Quad 6 is four chargers in one!
It is no longer necessary to charge one battery at a time! Now you can charge 4 batteries simultaneously with the LiPro Quad 6. With the LiPro Quad 6 you can plug in 4 batteries simultaneously and it will intelligently charge all 4 of them to their maximum capacity. This charger can also charge different types of battery at the same time, NiMH, NiCD, LiPo and LiFe can be charged simultaneously from different charging ports! It is also possible to store up to 5 battery specs per charger saving you even more time!

Specifications

• Operating voltage range - DC 11-15V
• Power Source - 12V DC (recommended 20-30A 12V Power Supply)
• Charge Power - 4 x 50Watts, current is regulated accordingly (e.g. 11.1V battery, charge current approx. 4.5A)
• Discharge Power - 5 watts, current is regulated accordingly
• Cell Count - 1-15 NiCd/NiMH cells, 1-6 LiPo/LiIon/LiFe cells, 1-10 Lead acid (2-20V)
• Current Drain for balancing lithium - 300mA
• Charger Dimensions - 225.4 x 158.6 x 62.4mm
• Net Weight - 1.09kg

Charge termination:

• NiCd/NiMH - Automatic, negative delta Peak method
• Lead-acid and lithium - Automatic, voltage dependant, CC-CV process
