בלבד 6650 ש"ח
|
|
| 2080 mm (81,9") |
2200 mm (86,3") |
| |
|
|
| 7,1 kg (15,4lb.) |
50-60 ccm / 4-5 kW |
| |
|
|
| |
5 chanel |
| |
|
| |

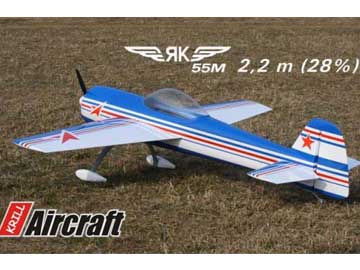

Was used same platform in the big brother 33% . This airplane was develop for the 50-60 cc gas and the 4-5kW electric engines too. Model is for all diehards and sport pilots, flying either scale aerobatics or 3D.
You can see some of nice and practical poins concerning build airplane :

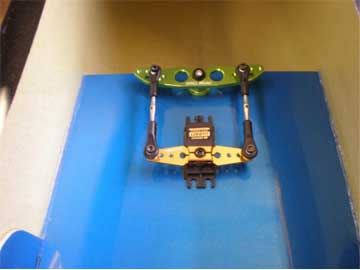

· integrated composite formers and ribs + Secraft rudder arms instaled :

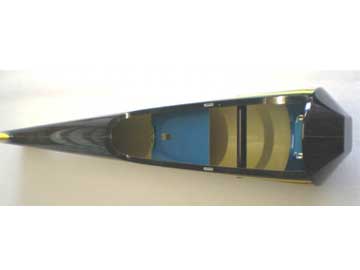

· Canopy opening is much larger for easy access and installation.

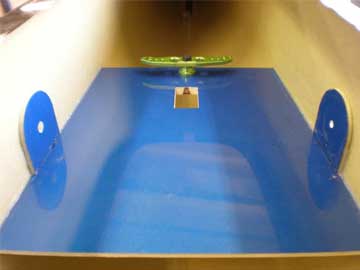

· Integrated composite tray for Rx, batteries, rudder servos,etc.
· All composite landing gear plate, integrated into fuselage.

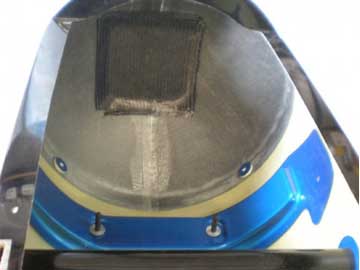

· Carbon fiber firewall.

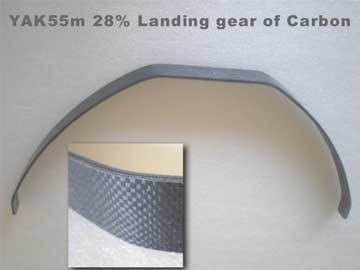

· C/F wing tube and stab tubes + C/F landing gear
Recomendation Accessories :
ELECTRO power : HACKER A80 / 10 + MasterSpin Opto 180A + Mezlik 2bl. 27x12TH + 10 cell 4500mA FuelPower.
GAS power : DA60 , DLE55 + KS muffler set + 500ml fuel tank
Servos :
- 2x .......... JR DS9401 - stabilizators
- 2x .......... JR DS9401 - ailerons
- 1x ...........JR DS9401 - rudder
And this is what has been done for you:
1- wings, elevators and rudder are installed
2- pre drilled the rudder hinges
3- clear canopy is glued into frame.
4- Cowl installed, using 4 x M5 bolts.
5- Landing gear is pre drilled

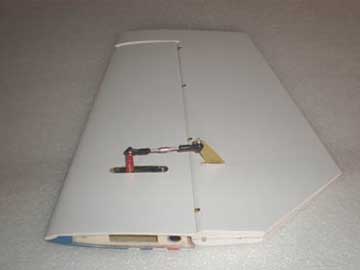

6- All control horns openings are pre cut for our CNC
7- sign points on the fuselage for rudder wires
Total weight the kit include hardware is 3,8 Kg.
There a line of accessories available for this airplane, such as spinner, wing covers, wheels,etc.All of them are listed on order form.
Included in the kit:

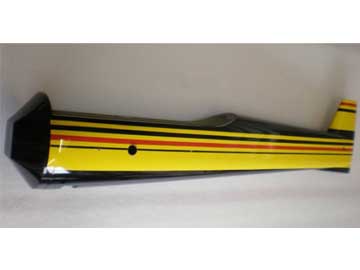

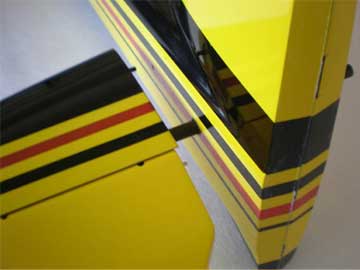

Composite parts- fuselage with integrated formers, wings, elevators, rudder, cowl, canopy, wheel pants , landing gear
No composite parts - wheel axles, bolts, control horns.
בלבד 6650 ש"ח
